Как работает стенд испытания трансмиссий? Полное руководство

Transmissions serve as the critical power distribution system in vehicles, converting engine output into usable torque and adjustable speed for diverse driving scenarios. Before installation, manufacturers and repair centers rely on transmission test benches to validate reliability, performance and durability under controlled conditions. This guide breaks down the core purpose, key components, step-by-step operation and value of transmission test systems.

Основное назначение стенда испытания трансмиссий

The test bench replicates the interaction between a transmission and engine, drivetrain and real‑world load in a lab environment. It enables technicians to:

• Проверять плавное и точное переключение передач

• Измерять крутящий момент, потери мощности и КПД

• Обнаруживать утечки, посторонние шумы и вибрацию

• Оценивать долговременную надежность при высокой нагрузке или частом переключении

• Калибровать блоки управления трансмиссией (TCM) для оптимальной производительности

Он превращает субъективные оценки в проверку на основе данных, необходимую для контроля качества и надежного ремонта.

5 основных компонентов стенда испытания трансмиссий

1. Источник питания (приводной двигатель)

Имитирует мощность двигателя для привода входного вала трансмиссии.

• Electric motors: Most widely used for precise speed/torque control, reversibility and energy efficiency.

• Internal combustion engines: Used for realistic torque curve matching, less common due to cost and regulations.

2. Система имитации нагрузки

Creates resistance simulating uphill, heavy load or highway cruising. A dynamometer (dyno) absorbs output power, adjustable for constant, variable or shock load scenarios. Regenerative dynos can recycle power as electricity.

3. Система управления и измерения («Мозг»)

Компьютеризированная система управляет стендом и собирает данные в реальном времени:

• Управляет скоростью, крутящим моментом и нагрузкой по запрограммированным циклам

• Взаимодействует с TCM для имитации работы ЭБУ

• Измеряет крутящий момент, скорость, гидравлическое давление, температуру и время переключения

• Generates charts and reports for performance analysis

4. Система крепления и соединения

Secures the transmission and ensures precise alignment between power source, transmission and dyno. Includes adjustable brackets, flexible couplings and high‑precision shafts to avoid vibration or damage.

5. Вспомогательные системы

Обеспечивают безопасную и стабильную работу:

• Lubrication: Supplies ATF or gear oil and monitors condition

• Cooling: Prevents overheating during prolonged high‑load testing

• Safety: Emergency stop, overload protection and leak detection

Step‑by‑Step Operation of a Transmission Test Bench

1. Setup & CalibrationMount the transmission, align components, connect sensors and TCM, calibrate the system for accuracy.

2. Pre‑Test ChecksActivate lubrication and cooling to reach proper fluid level and temperature.

3. Simulate Operating ConditionsPower source drives input; dyno applies preset load to mimic real driving.

4. Test & Data CaptureControl system triggers shifts and records shifting smoothness, torque efficiency, temperature and anomalies.

5. Repeat & ExpandTest across multiple loads, speeds and shift patterns to cover full operating range.

6. Analyze & ValidateSoftware generates reports; technicians judge compliance with quality standards. Faulty units are repaired and retested.

Why Transmission Test Benches Are Indispensable

Road testing alone is time‑consuming, costly and inconsistent due to weather, road conditions and driver behavior. Test benches provide full control over variables and precise measurement. For manufacturers, they ensure only high‑quality units reach market. For repair shops, they confirm repaired transmissions perform reliably before reinstallation, reducing rework and complaints.

Final Takeaway

Transmission test benches integrate precision mechanics and digital control to simulate real‑world conditions and quantify every critical metric. They are foundational to automotive quality, reliability and efficiency, supporting both production and aftermarket service worldwide.

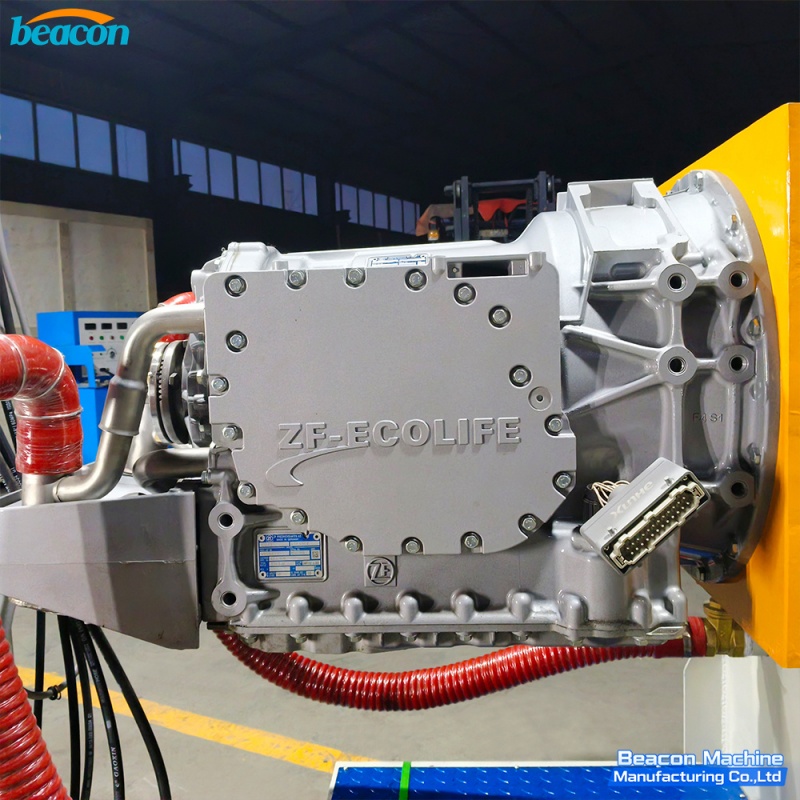

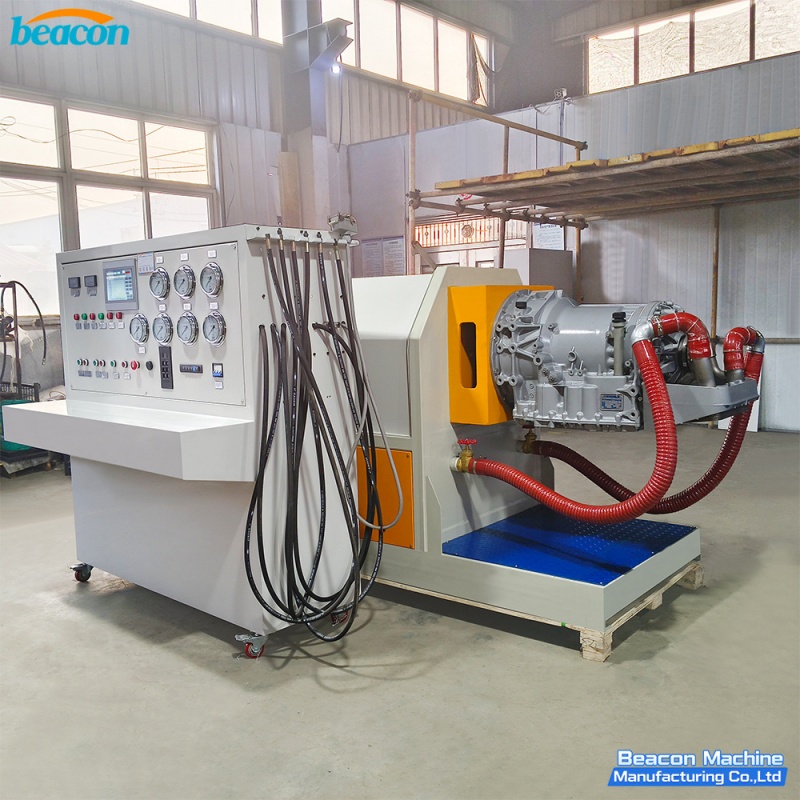

To Testing Transmission,the currently best solution from the market is from BEACON MACHINE BCZB-4 Automatic Transmission Test Bench:
